Monday, 7 October 2013

A bargain price for excellent bike lights and how I installed them on my own touring bike

While stocks last, buy a Nordlicht dynamo and a 60 lux Philips
headlight
and receive a Philips rear light and spoke reflectors
for free.
In our webshop, DutchBikeBits.com, we're currently running a special offer. Buy a Nordlicht Dynamo and a 60 lux Philips headlight and you'll receive the battery version of the excellent Philips rear light and a set of spoke reflectors for free.

The Philips headlight is one of the very best dynamo headlights available. It has one of the best beam shapes, wide and very bright but with a cut-off at the top to avoid dazzling oncoming cyclists.

We recommend powering the Philips headlight with a Nordlicht dynamo - the best bottle dynamo ever made - in order to create a very effective dynamo lighting system which is easy to fit to an existing bicycle.

My old rear light on the left vs. the
Philips light on the right. This is no
inferior "freebie" but probably the most
effective bicycle rear light anywhere !
The parts that we are offering for free are not low cost or bad quality components. The rear battery light is one of the best rear lights available for a bicycle and has a recommended retail price of €35. Scotchlight spoke reflectors are extremely effective at making your bicycle more visible after dark and a set of 36 of these would normally retail for around €10 a set.

Both the front and rear lights are truly excellent and the offer is too good to miss so I decided to install them on my own touring bike. A notable upgrade from the lights I was using before, both front and back.

Installing on my own touring bike
I first mounted the dynamo using the
V-brake racket
In addition to the dynamo and light the only other part that I needed was a bracket to mount the dynamo. We sell three different dynamo brackets, one for front wheel mounting (off the fork), one for rear wheel mounting (off the seat stay) and one for mounting next to a V-brake boss. I chose for the latter.

The first part that I mounted was the dynamo. This required removing the bolt holding the left half of the V-brake on the front of my bike and reinserting the bolt with the bracket in place. It's an easy job, taking all of five minutes, but this of course has to be done with some care. If you are not confident about adjusting components around your brakes safely, please do not touch them but ask someone else to do the job for you. Please read the guide to setting up a bottle dynamo from a previous blog post.

After installing the dynamo I installed the front light. For most touring bikes this requires nothing more than removing the bolt which holds the front mudguard in place and using it to attach both the mudguard and the included bracket for the light. However on my recumbent bike there's no convenient place to attach the front light. This was resolved by reattaching the bracket after turning it backwards and using a single hose clamp to attach the bracket to the front boom.

The long wire from the front light reaches to the two connectors on the bottom of the dynamo. Cable ties should be used to keep the cable attached to the frame so that it cannot be damaged. If the light does not initially work, swap the two wires at the dynamo. It's possible for there to be a short circuit through the frame if they are connected the wrong way around. It's also important to have the switch on top of the light in the ON position.

The rear light is simply bolted onto the rear rack in the same way as the previous lock had been mounted. This light is bright even in daytime.

The Philips rear light is visible from a remarkably wide 320 degree angle so greatly increases the visibility of a cyclist from the side as well as from the rear. Also, because the light is spread over a large "race-track" shaped area, this gives a better impression of distance and is more pleasant to ride behind than are many single point LED rear lights.

My touring bike for 14 years, now with
better lights and reflectors than ever.
Finally I clipped some of the 36 spoke reflectors onto the spokes of my bike. I used just six on the front wheel and six on the rear wheel, leaving enough to provide a similar treatment on two more bicycles. A flash photo shows how effective these are when illuminated by car headlights.

A large rectangular area of the road is lit extremely well by the Philips headlight but the shaped reflectors used cut the beam off at the top so that it does not waste light and does not dazzle oncoming cyclists. These parts combine to make a very effective lighting setup both in order both to see and to be be seen.

Why are we offering these free parts ?
The offer of a free rear light and spoke reflectors will last only for a limited time. We are able to do this because for a limited time Philips are bundling the rear light and reflectors with the front light at a special price, suggesting that customers should pay the usual retail price for the front light plus half the usual price for the rear light for the combination.

Note that we don't sell the battery version of the Philips light. When the product was new, a small percentage of our customers for these lights found that theirs became full of rainwater and failed. Because this performance fell short of our quality standards we stopped selling the Philips battery rear lights. In fact, many models of battery lights are not 100% waterproof and can fail if they become saturated with water. We believe that if these lights are allowed to dry out should they become wet then not being entirely waterproof won't be an issue for most users, but we can't offer a guarantee. Rather than selling the lights we've therefore decided to give them as a gift to customers who also purchase a dynamo. By taking advantage of this offer you can put together a very high quality lighting setup for a very good price.

Note that this issue does not affect the rear dynamo light from Philips or their excellent front lights, both of which are weather resistant and guaranteed.

See also our full selection of bicycle lights

Friday, 31 May 2013

All shipments start their journey on our cargo bike



We've got happy customers in almost every country in the world, including so far afield as Australia and New Zealand, every state in the USA, Korea, Japan and China, as well as all across Europe.

However, every one of the deliveries starts off by bicycle. This sometimes means I find myself riding through the streets of Assen on a bike which is stacked up with a lot of parcels, as seen here.



Thursday, 6 December 2012

Snow. What tyres to make it safe ?

Judy a hundred metres from our home. The cycle-path is clear of ice and snow
We had four cm of snow last night, the first real snow of the winter. It looks wonderful, but snow can be dangerous for cyclists especially if it is not removed from the cycle-paths and if it becomes compacted.

Marathon Winter Studded Tyre
Assen is quite good at clearing snow, but there can still be small patches of ice hidden underneath, especially later in winter. That's why the first thing I did this morning, before breakfast, was change the front tyre of Judy's bike for a Marathon Winter studded tyre.

Fitting a studded tyre on the front wheel is the best insurance possible against a fall. Why only the front ? If the front wheel loses traction then a fall is almost inevitable and it is difficult to do anything to control such a fall. Falls due to the rear wheel slipping are much less common and much less scary.

Parent with children cycling this morning. This cycle-path
is clear, but you can't see it from this POV.
You can see from the photo at the top that many other people had already cycled this way. People tend not to make so many trips for pleasure, but cycling for utility purposes doesn't reduce much in the winter in the Netherlands.

I'll cycle with parcels containing customers' orders from our bike parts shop to the post office a bit later today and mine will not be the only bike there.

We still have studded tyres in stock. Order them now and they'll be with you in a few days.

Photos taken during the trip to the Post Office
The temperature didn't reach above zero all day today, so the snow mostly stayed where it was, unless it was swept. Some photos below show conditions for cycling in Assen
Safe conditions are also helpful for people with disabilities (written about several times before on the other blog)

Plenty of bikes parked outside the popular Hema department store in a pedestrian zone, and all ages of people arriving and leaving by bike.

Plenty of bikes at an indoor shopping centre.

Not many people use bakfietsen in Assen because conditions are safe for children to ride their own bikes. However, some people do transport smaller children by bakfiets.

A small "traffic jam" on the cycle-path. Utility cycling holds up in the winter because due to the lack of ice on the cycle-paths it is nearly as easy to cycle on a day like this as it is in the summer.

Tread on a bicycle tyre normally serves no purpose other than for marketing. Asphalt or concrete surfaces are harder than rubber, and grip comes from the small imperfections in those surfaces forcing themselves into the rubber. However, when there is snow the tread forces itself into the snow and that is where grip comes from. That is why any treaded tyre is better for snow. However, when it is icy tread doesn't work because ice is too hard to be deformed by rubber. At this point, the studs on the Marathon Winter tyres come into their own. They provide very small points of contact and pierce the ice. By doing so, you have far more grip than is possible with a rubber tyre. You can see both the tread marks in the snow and the black spots where the studs in my tyre pierced the ice underneath the snow, in the photo on the right.

For two wheeled bicycles, the most critical tyre is the front tyre. However, with a velomobile or other three wheel recumbent with two wheels at the front the situation is reversed. With that type of bike it is absolutely critical that the rear wheel does not lose traction as that can result in the bike rotating to travel sideways and turning over. That's why I fit just one Marathon Winter tyre to the rear wheel of my Mango making it possible to continue going for recreational rides in the winter in safety.

Saturday, 24 November 2012

Two excellent new lights

We've added two new front lights to our selection.

The Union UN-4268 has a very boring name, but it's a great light. 35 lux with a well shaped beam from a curved reflector at under €20 is pretty much unbeatable. But this light also has automatic switching dependent on light level (optional and intended for use with hub dynamos) and a powerful standlight which keeps it running for minutes after you've stopped.

The Basta Sprint headlight remains less expensive, but it's got a lower output than this one and doesn't have the other advanced features.

The second new light is completely different. The Philips Safe Ride Pedelec is a top of the range light which combines the 80 lux output of the same company's internally battery powered light with the smaller size of their excellent 60 lux dynamo light in a product designed specifically for use with pedelecs.

If you have a pedelec with less than impressive lights, there's no better upgrade on the market than this. The "motorcycle performance" comes from two high power LEDs and the best optics available which together reach 60 m without blinding oncoming cyclists or drivers.

Another thing that I like about this light is that the included mount can be used for other applications than pedelecs. In fact, it's perhaps the best possible light now available for mounting externally on velomobiles. Even the included bracket can be turned around to works for this application as you see in the attached photo.

Some DIY is needed to use the Philips Pedelec light. You have to supply both power and switching. However, this is made easy by the incredibly wide range of input voltages on which it operates - anything between 6 and 48 volts DC will do, meaning that almost all bicycle power supplies either for motor assist or for velomobile lighting, whether they're based on NiMH, Lithium or even old-school Lead Acid batteries are suitable without any extra circuitry being required.

Finally, this is of course nothing to stop you running this light on a normal bicycle used for commuting or touring. The 80 lux internal battery light from Philips provides much the same performance, but you can achieve longer running times from the pedelec light if you provide a larger battery.

You can find both lights directly by following the links above, or by browsing in our webshop.

Wednesday, 24 October 2012

Upright and comfortable - Choosing a saddle for everyday riding

Mountain bikes and racing bikes have narrow saddles. The reason for this is that they are ridden in a bent forward position. Your weight is spread between the handlebars and your legs as well as on the saddle and you need a degree of freedom for comfort and to avoid chafing.

However, if you ride a more upright bicycle your weight is supported much less by the handlebars and more by the saddle and your legs are in a different position relative to the rest of your body. This is also true if you convert a mountain bike to achieve a more comfortable and more upright position. While changing the stem and handlebars, don't overlook the importance of changing the saddle.

For a long time, we sold just one type of saddle at DutchBikeBits.com - the Selle Royal 8261, as shown on the left. This is a good everyday saddle for most people. It has a good shape, it's not overly wide, it has a little sprung suspension for extra comfort and we use it on almost all of our bicycles.

What's more, this saddle comes at a very reasonable cost, it lasts many years of everyday use and it has an advantage over some more expensive saddles that some people overlook - it's made of plastic.

What ? Plastic saddles are better ? If you want to ride your bike more than maintain then yes indeed they are. Plastic saddles do not need to be guarded against the weather as do leather saddles. If they get wet, you just brush off the wetness and they're dry again. Also, there is nothing to rub off and stain clothes, even when they are wet. That's why I find this to be the perfect saddle for riding everyday.

However, I'm not everyone. My wife, Judy, was never quite completely happy with the 8261. After some time spent deliberating, she decided upon the Selle Royal RoyalGel 8493 Women's Comfort Saddle as shown on the right. This is a softer saddle with a more sculpted form than the 8261 and it is specifically designed to suit women who want to ride upright. Judy now rides daily with this saddle, which apart from the different design has the same features as the 8261 which I and the rest of our family use.

We don't sell everything and we don't seek to sell everything. Rather, we sell those products which we believe in. It is only after Judy had ridden on her new saddle for several months that we took the decision to double the size of our range of saddles and sell two different types.
Sitting upright, comfortable, smiling
See also our anatomy of a reliable, everyday bicycle.

Thursday, 24 May 2012

Choosing the right size of tyres for your bike

47-406: A "20 inch" tyre.
47 mm wide, mounts on a 406 mm rim
Bicycle tyres come in a bewildering array of different sizes. It's absolutely vital to buy the correct size for your bike.

While tyres are mostly made of rubber, the most important dimension when fitting is that of the bead of the tyre, and this is reinforced either with steel wire (for most tyres) or with glass or other fibres (for folding tyres) so that the tyre won't stretch and come off the rim when fully inflated.

For this reason, bicycle tyres do not stretch and even sizes which are very close in size are not interchangeable.

Old fashioned ways of labeling tyres
In the past, wheel sizes were usually described as the outer diameter of the size of the wheel including a nominal inflated tyre. In countries which used imperial units these would be expressed as a size in inches (e.g. "26 inch" or "28 inch") while in metric countries the size was expressed in millimetres (e.g. 700 C or 650 A).

ETRTO 40-559 = 40 mm wide 559 mm
diameter rim. Also labeled 26x1.50 but
you are best off ignoring this old "size"
This system would work just fine if each size of wheel was described by a different number. However, that was not so. As an example, the "26 inch" wheel size used on traditional British bicycles is a lot larger than the "26 inch" wheel size used on traditional American bikes. British bikes were for many years imported to the USA, and when Mountain Bikes became popular, they brought the American wheel size to the UK. What's more, there are more "26 inch" wheel sizes than just these two.

There are also two different sizes of "28 inch" wheel, one of which is larger and the other smaller than the "27 inch" size. "29 inch" wheeled mountain bikes actually use the same diameter rim as the smaller "28 inch" size, so these two use smaller wheels than "27 inch".

The same problems arise with smaller wheels as well. The two most commonly used "16 inch" wheel sizes are both considerably smaller than 16 inches in diameter. The largest of the two measures just over 13.5 inches in diameter, while the smaller is nearly 2 inches smaller than this. There are also several different wheel sizes referred to "20 inch".

The metric versions of these measurements also cause confusion. A 700 C wheel is not the same size as a 700 B wheel but it is the same as one of the "28 inch" sizes, even though it's neither 700 mm nor 28 inch in diameter.

Inevitably, there is much confusion about wheel sizes.

The solution: ETRTO numbers
The most common size for Dutch town bikes and many touring
bikes. A 622 mm diameter rim with a 37 mm wide tyre
In 1964, the European Tyre and Rim Technical Organisation was formed. They're an organisation that few people have heard of, and I know little of what they've been doing for the last 50 years except that they've given cyclists a great gift in the form of a system for identifying tyre and wheel sizes which guarantees compatibility. This has been standardized internationally in the form of ISO 5775, but most people still refer to these figures as "ETRTO numbers".

The "ETRTO number" consists of two numbers separated by a dash. The first gives the width of the tyre, while the second gives the diameter of the rim which it fits. For instance, 37-622 indicates that a tyre has a width of 37 mm and is to be mounted on a rim of 622 mm diameter. This is the most common size for Dutch town bikes, and is also a common size for touring bikes everywhere.

Buying a replacement tyre
Before buying a replacement tyre, inner tube or wheel, first check the writing on the side of your existing tyre and find the ETRTO number. To help you find an exact match which will work on your bike, all the tyres and inner tube as well as the wheels in our web shop are listed with their available ETRTO sizes.

You do not always have to buy the same width of tyre as you had before. While it is not a good idea to fit a very wide tyre onto a very narrow rim, nor a very narrow tyre onto a very wide rim, in principle any tyre of any width will fit on any rim which is the correct size. In practice we suggest not going too far from what the manufacturer of your bicycle fitted. For example, if you currently have 32 mm wide tyres, then fitting a 37 mm wide tyre instead will likely give a bit more comfort. However, make sure you have enough clearance in the frame and under mudguards for a larger tyre size.

Recommended tyres and sizes for different types of bikes
Below we make some recommendations for some types of bikes. We supply a much wider range of tyres than this, so if you need a different size, please check all of what we have, and contact us if you need a size which isn't listed

You should always make reference to the ETRTO number on the side of your existing tyres before buying any tyre. Please take our recommendation, but confirm that these are the exact tyres you want by checking your tyre size yourself before ordering. If you are changing the width of the tyre that you use, make sure you have a new width that will work on your rims and in your frame:

Type of bikeTyre sizeOld sizeRecommendation with link to where to buy
British Three Speed37-59026"Marathon Plus, Marathon, Delta Cruiser
New Dutch town bike37-62228x1 3/8Marathon, Marathon Plus, Delta Cruiser
"Old" Dutch town bike40-63528x1 1/2Marathon, Marathon Plus, Delta Cruiser
Modern touring bike28-622 to 37-62228" / 700CMarathon Plus, Marathon, Marathon Supreme
Racing bike20-622 to 28-62228" / 700CDurano / Durano S, SportContact, Grand Prix
Old racing bike20-630 to 32-63027x1 1/4Marathon
Mountain bike47-559 to 55-55926"Furious Fred, Marathon Winter, Big Apple
Mountain bike used on road32-559 to 50-55926"Big Apple, SportContact, Kojak, Marathon, Marathon Plus
20" wheel folding bike28-406 to 47-40620"Kojak, Marathon, Marathon Plus
16" wheel folding bike28-305 to 47-30516"Marathon, Marathon Plus
Brompton / Moulton35-34916"Marathon, Marathon Plus
Kronan54-584 or 47-62226" / 28"Kronan tyres
(Kronan men's and women's frames are different)

Profile
It is not possible for a bicycle tyre to "aquaplane" because speeds are too low, and pressures are too high. Therefore, a profile is not needed on bicycle tyres to increase grip in the wet.

Top to bottom. Speed & good grip: Kojak
Everyday use and touring: Marathon
Ice and Snow: Marathon Winter
When on a hard surface (concrete, asphalt), grip comes from the tyre deforming over small sharp edges in the surface, not from the surface deforming to fit the tyre, for this reason, a complete slick tyre provides all the grip you need on such a surface. What's more, a tyre which has a tread pattern will generally have a higher rolling resistance due to deforming of the tyre as you ride along. For this reason, a completely slick tyre (like the Kojak) would serve most people well most of the time.

However, tread on a tyre is useful in some circumstances. If you sometimes ride on unfinished paths, mud, sand and snow, then a slight tread pattern is useful because the surface will then deform around the tread and provide extra grip. It is for this reason (as well as that new tread patterns look good in marketing materials) that most general purpose tyres have a slight tread.

A more extreme tread pattern is needed for more extreme circumstances. Those who do cross country riding or mountain biking on rough paths benefit from an aggressive tread, and of course this becomes more extreme in examples such as the Marathon Winter which go as far as having metal studs to pierce through ice.

Tyre Pressures
It is important to maintain correct tyre pressures. While it can be It is more common that people run their tyres at too low a pressure than too high. If the pressure is too low then too much of your energy goes into deforming the tyre as you cycle, and this makes cycling considerable less efficient.

If you can easily deform a tyre with your fingers then it is almost certainly under-inflated. All bicycle tyres run at higher pressures than car tyres, and car pumps are often not capable of achieving high enough pressures for a bicycle.

Racing bike tyre with "French" 700x23C
description alongside ETRTO
Narrower tyres need higher pressure than wider tyres. The racing bike tyre on the left has a recommended pressure between 6 and 10 bar (85 to 145 psi), while a wider mountain bike tyre may need just 2 to 3 bar (30 to 45 psi).

Narrow tyres may damaged quite quickly by too low a pressure, while some tyres (notably the Schwalbe Marathon) have been reformulated to make them more resistant to damage due to low pressure.

For everyday use, a thumb test (if you can deform the side-wall of the tyre with your thumb, pump it up) is enough for most people. However, we also stock the very good Schwalbe digital air pressure tester for people who want to make sure their tyres are at a suitable pressure. We also sell a range of pumps suitable for getting your tyres to a suitable pressure.

Note that with tyres with puncture resistant layers, like the Marathon Plus, if you try to test the pressure by squeezing the running surface of the tyre, all you'll "test" is how soft the anti-puncture layer is. It's important to do this on the sides of the tyre, squeezing between thumb and forefinger.

Wednesday, 11 January 2012

Selecting and installing dynamo lighting

Dynamo lights installed on our delivery bike
(or... everything we know about dynamo lights for bicycles).

Why dynamo lighting ?

Much nonsense is written about dynamo lights. The objections usually come from people who don't use dynamos, or have not used them for many years.

According to some "experts", dynamos either slow you down or wear out your tyres or don't produce much light, make noise, or perhaps they commit a combination of these sins.

Actually, modern dynamo lighting is efficient, reliable, quiet and produces so much light that the best headlights now have optics which shape the beam to prevent those coming in the opposite way from being dazzled.

For utility cyclists we recommend dynamo lighting. There are many advantages over battery powered lights:
  1. It's low cost in use as no batteries need ever be bought.
  2. It's reliable for day to day use as there are no batteries to go flat and have to be charged or replaced.
  3. Dynamo lights are permanently mounted on the bike, meaning you don't have to detach things and take them with you when you park your bike.
  4. Permanent mounting also means your lights are always there. An unexpected delay doesn't result in cycling in the dark with no lighting.
  5. There is quite a lot of power available to run lights from a dynamo so dynamo lights can be very bright.
  6. Because the power source is you, your lights stay bright even on long rides. They can't fade out half way home because the battery ran out.
Dynamo lighting is a "fit and forget" option. Set it up properly once and ride with the minimum of maintenance thereafter.

Selecting dynamo lights
There are a wide range of dynamo lights available, from the very cheapest all in one sets through to expensive systems which can cost more than €200. Any system of dynamo lights consists of three components, the dynamo itself, a headlight and a rear light,

AXA and Nordlicht bottle dynamos, Shimano hub dynamo
Choosing a dynamo
There are two types of dynamo - those built in a wheel ( "hub dynamos" ) and those which run on the side-wall of a wheel ( "bottle dynamos" ). Each has advantages over the other:
  • While no good quality dynamo will slow you down by enough to make a difference unless you're in a race, hub dynamos offer lower drag when the lights on are than bottle dynamos do. However, because bottle dynamos completely disconnect from the wheel when the lights are out, bottles offer no resistance when you are not using the lights, while hub dynamos still have a small amount of in-built drag relative to a normal well-maintained hub.
  • Hub dynamos cannot be knocked out of alignment, and will continue to work well even if your wheel is damaged and the rim bent. However, bottle dynamos do not need to be replaced if you damage your wheel and have to replace it.
  • Hub dynamos are heavier than bottle dynamos.
  • Bottle dynamos can slip in the wet (meaning your lights can be unreliable) though this is rare with correct setup.
  • Hub dynamos cost more to retrofit because you must buy or build a wheel. However, they don't require brackets to be fitted to the bike and the wheels probably don't cost as much as you think.
  • Bottle dynamos are much more straightforward to retrofit to a bike which already has hub or disk brakes or to a rear wheel with hub gears.
A cheap "all in one" dynamo
lighting set. We don't sell these.
If you're struggling with a set like
 this, see our guide below.
We sell both bottle and hub dynamos. We've used both types over the years. At the moment, most of our own bikes are fitted with bottle dynamos. Our favourite bottle dynamo is the Nordlicht. This is made of metal, robust, very reliable and light running. We're still using one that we bought 15 years ago. A lot of quality for something so inexpensive. We also rate the AXA HR which is a little less expensive and perhaps runs slightly lighter. We also have a range of wheels with Shimano hub dynamos. These start at under €50. Very good value for what you get.

Very nearly all currently available dynamos, whether hub or bottle, have the same output of 6 volts at 3 Watts to power both front and back lights. 2.4 W is allocated for the front light and 0.6 W for the rear. Just a few models of hub dynamo produce 6 V 2.4 W making them suitable for powering just the front light.

This means that all dynamos are compatible with any available dynamo lights and you can mix and match to achieve a combination which has the performance and price that you want.  Even the cheapest all in one set has the same output, so even if you have started with a set like this, you can swap one component at a time for those of better quality until you have a satisfactory lighting setup.

There's just one thing to bear in mind with headlights - with a hub dynamo you want either a manual or automatic light sensing switch on the headlight so that you don't run the lights even in daytime. This switch will also operate the rear light.

Oh, and something I must point out about having 2.4 W for the front lights. This is quite a lot of energy for bicycle lighting. Most battery lights of old used 0.75 W front bulbs as higher power led to very short battery life. Contrary to many people's opinions, dynamo lights were always brighter than battery lights. While some high end battery lights available these days are brighter than dynamo lights, many battery powered lights still do not attempt to produce so much light as even low cost dynamo headlights do, because trying to do so results in a short battery life.

Dynamo headlights

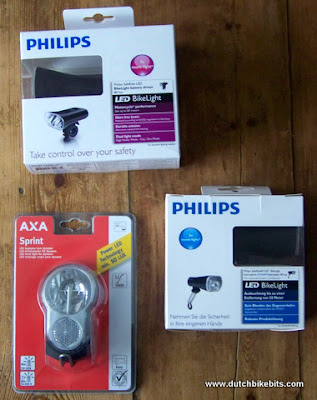

Three of our favourite dynamo headlights, the remarkably
good value AXA Sprint and two from the Philips range.
In days of old, dynamo lights used sometimes incandescent bulbs. These were often used with reflector designs which spread the light too broadly and could result in a not very effective light pattern. Halogen bulbs improved the situation considerably as they increased the light output for the same power, and better reflector shapes helped even more. However, they were never quite adequate for fast cyclists.

The introduction of LED headlights has changed everything. 2.4 W (the headlight share of the 3 W output of a dynamo) is enough to produce a considerable amount of light from LEDs. Also, LEDs last and last and last. There is no need to replace bulbs.

Even at a low price, modern dynamo LED headlights work extremely well. At the mid and high price ranges they become yet more effective.

An important advance is shaped lenses and use of indirect light from the LED source. This has made it possible to build extremely bright lights with a sharp cut off at the top which won't blind oncoming cyclists and drivers. It also means that more light goes where it is needed for you to see by because less is wasted in the wrong direction.

We currently have five favourite LED headlights which we particularly recommend. Each also includes a retro-reflector which shows up in car headlights:
  • Philips SafeRide 60 lux - relatively expensive ( €80 ) but produces a lot of light from two high power LEDs. Powerful enough to be legal lighting for small motorbikes in some countries. Keeps glowing for up to four minutes after you stop riding. Mechanical switch for hub dynamo use.
  • Philips SafeRide 40 lux - lower cost ( €50 ) but still an enormous amount of light. With an automatic light sensing switch which in combination with a hub dynamo means your lights come on automatically at night. Keeps glowing for up to four minutes after you stop riding.
  • B&M Lumotec Lyt Plus - a mid-price light ( €36 ) still with high output and a good beam shape, including standlight and optional switch or sensor for dynamo.
  • Union UN-4268 - Less than €20 for a light with a 35 lux output, standlight and automatic switching on and off.
  • AXA Sprint 10 lux - a much lower cost light. In fact, a bargain at just €12.50. It's not so bright as the B&M Lyt or the Philips lamps, but still well in advance of what we used use ten years ago and I find it entirely adequate for riding in town where there are street lights. Optional switch and stand light functions.
Dynamo rear lights
Our favourite dynamo rear lights. All include a stand light function which
means they store electricity and continue to glow after you stop.
Dynamo rear lights have also been revolutionized by LED technology. It made it possible to have a "stand light", where the light would charge up and store electricity so that it can continue to glow after you stop cycling.

With rear lights, there are other factors to consider, such as where you will mount the light. Some rear lights are designed to mount on the rear mudguard (fender) while others are designed to mount on the rear rack.

Our favourite rear dynamo lights are as follows. All include a stand-light function and a reflector to give extra visibility when lit by car headlights:
  • Philips Lumiring rear light ( €28 )- can be mounted either horizontally on a rear rack or vertically elsewhere. Either way the light is emitted over a 320 degree angle. This light produces an enormous amount of light but spreads it around the "lumiring" which means there isn't a single bright spot which can be unpleasant to cycle behind.
  • Busch und Müller Seculite Plus ( €21.50 ) - similar performance to the Toplight but in a light which mounts on the rear mudguard.
  • Busch und Müller Toplight Plus ( €18 -) a slightly more economical nicely made rear rack mounting light.
  • Basta Ray Steady ( €10 )- a low cost rack mounting alternative which still produces a lot of light. Slightly plasticky feel, but we think it's robust enough.
Finally, note that running the rear light from the dynamo is optional. You can also use a dynamo front light together with a battery rear light. Some people prefer this due to not having to run so many cables along their bike. We have battery rear lights to use together with dynamo lights which can be mounted permanently on the bike.

Other things you'll need

We sell wire and zip ties but not tape
As well as the main parts of dynamo, front and rear light, there are other parts that you will probably need.

Some lights come with wire, but not all. You will probably need wire to attach between the dynamo and headlight or between the headlight and rear light. We sell wire fitted with the correct size of push on connector for our lights.

You can use zip-ties and/or electrical tape to run the wires along the forks and frame of your bike. We have inexpensive zip-ties but do not currently sell tape because you can almost certainly buy it as cheaply as we can in a discount store near your home, and you may be able to find colours which are a good match to your bike.

If using zip-ties, which we recommend you do, please don't do them up so tight that you cut through the insulation of the wire. Also, remember to leave a little loop of wire around the headset so that the handlebars can be turned without putting undue stress of wire which is heading to the rear lamp.

Dynamo mounting brackets. Left to right: front wheel,
rear wheel, Canti / V brake boss.
If fitting a bottle dynamo to a bike which doesn't have a bottle dynamo mount on the frame or fork, you will need to buy a bracket. Of these, we think the Cantilever / V brake mounting bracket works best, so if you have mounting points for these brakes, whether or not they are in use, this would be our first choice. Like most things we sell, we use it ourselves as you can see in the first photo on this page.

While the electricity from the dynamo is AC, it is still important to make sure that you keep the "earth" connection consistent through the wiring of your lights. The reason is that the "earth" is connected to the frame of the bike within both the dynamo and some of the lights. Confusions over "earth" can lead to faults such as the switch on a headlight not actually switching off your lights because electricity is flowing through the frame of your bike, or the lights either being very dim or not lighting at all due to a short circuit through the frame.

The "earth" side of each light and dynamo is made obvious by labels on each component. If unsure, use the wiring diagram. The black wire in the diagram denotes the earth connection. The outside of the wire does not of course have to be this colour. With the wire that we supply, both are black but the earth wire has a white stripe along it.

When there is no switch on a headlight, the input and output are the same. Just connect the wires from the dynamo and to the rear light together at this point (doing it this way makes it easier to change to a different headlight at a later date).

Switching a dynamo on and off
Not all bottle dynamos work in an identical manner, but it is usually the case that you press a button of some kind to release the spring to allow the dynamo to push against the wheel to switch the dynamo on and pull the dynamo gently away from the wheel until you feel a click to switch back off.

In this video I demonstrate with a Nordlicht dynamo, the type that we recommended most highly

Setting up a bottle dynamo
The dynamo should run on the dynamo
track on the side of the tyre.

There are a few factors which should be taken into account when using bottle dynamos. If you take care of these small issues then problems with bottle dynamos are rare:
  1. Run the dynamo on a tyre with a dynamo tread and make sure that the dynamo is aligned so that it runs correctly along that tread.

    Skinwall racing tyres are not designed for use with a dynamo and the sidewall of such a tyre could be damaged by using a dynamo against it. All the tyres that we recommend for everyday use have a dynamo track on their sidewall. However, if you prefer skinwall tyres, note that the Nordlicht dynamo can be run on the rim, which makes it compatible with skinwall tyres.

  2. Take care of correct pressure against the sidewall of the tyre.
    In the "off" position, the gap
    between tyre and dynamo
    roller must be right.

    I find that setting up the dynamo so that in the "off" position it is about one cm clear of the tyre works best. You may find that this varies a little with different combinations of tyre and dynamo.

    Note that when you change between different tyres of different widths this distance may need setting up again.

    To adjust the gap between the rubber or steel roller of the dynamo and the tyre you can bend the brazed on bracket until this spacing is correct. If the gap is too wide or too short then it may result in there being inadequate pressure. Your correct distance may not be the same as mine. Excessive pressure results in more drag and can also sometimes result in the dynamo slipping.

    The Nordlicht dynamo with rubber wheel can also be set up to run on the rim. The same rules apply.

  3. A straight line between the axis of the dynamo and the centre
    of the wheel is important.
  4. The dynamo axis must be lined up so that it passes directly over the centre of the wheel. Not doing this will roll out the roller on the dynamo more quickly than normal and can even damage bearings in the dynamo.

  5. Slipping can occur if the roller is worn out. Replacement rubber rollers can be bought in our shop for both the AXA and Nordlicht dynamos. In both cases you simply pull off the old one and push the new one on to replace it.
  6. Bent wheels result in intermittent lighting behaviour because the dynamo stops operating as the low point comes around.

    Solving this problem requires either a new wheel or rebuilding of the existing wheel. Minor problems can sometimes be solved by tweaking with a spoke-key. Loosen spokes on the side which is convex, and tighten adjacent spokes by the same number of turns on the side which is concave.
  7. A squealing noise from the dynamo quite possibly means that the internal bearings are worn out. It's usually accompanied by much more drag and can result in intermittent light. This happens quite quickly with some cheap dynamos, and is aggravated by incorrect setup with the axis of the dynamo not going past the centre of the wheel. If your dynamo has reached this point, you may well need to replace it. A better quality dynamo will last longer than a cheap one.

    However, before you dispose of the old dynamo, try applying some light oil, just a couple of drops, to the bearings. You may need to remove the roller to do this. If the dynamo is old, but still in good condition, it may simply have dried out.
  8. Periodic noises: If a noise occurs roughly twice or three times a second with a bottle dynamo setup, this is caused by the wheel, not the dynamo. Wheels on bicycles rotate roughly two to three times a second at a normal rate of cycling. A warped wheel, a defect on the tyre or other problems with the wheel can cause slipping or jumping of a bottle dynamo at the frequency of wheel rotation and can make quite a lot of noise. If you experience this problem, turn the wheel slowly and watch for defects.

Conclusion
This article is quite long because I've tried to cover everything. However, setting up dynamo lights isn't difficult to do. Once it's been done, you have "free" lighting with lights which are permanently attached to your bike and cannot be easily stolen (you need tools). A great bonus for utility cyclists, as you don't have to carry things with you when you leave your bike.

For some kinds of sport cycling, for example road racers who want to carry absolutely the minimum of weight and be able to easily remove their bikes for daytime racing, or night-time mountain bikers who want enormously powerful lights which flood the entire area in front of them with light1, there is no real choice but to use battery powered lights. For the rest of us, dynamos really are the best option.

FAQ
Q: Do bottle dynamos wear the sidewall of your tyre ? A: No. The roller has very little pressure compared with that of the bike on the road so wear on the sidewall of the tyre is very much lower than that of the tyre against the road surface. Normally you will notice no sidewall wear of significance in the lifetime of a tyre. You should, however, only use a sidewall dynamo on a tyre which has a dynamo track printed on it.

Q: Do bottle dynamos slip in the wet ?
A: With a quality dynamo this is unlikely to happen unless the dynamo is not set up correctly. See the setup section

Q: How much does a dynamo slow you down ?
A: Almost not at all. I wouldn't expect to be slowed by more than 1/20th of my normal speed by a well set up quality bottle dynamo when the lights are on. A hub dynamo will slow you even less and of course when lights are off there no no drag from a bottle dynamo and very nearly none from a hub. The stronger you are, the less the effect can be felt.

Q: Which dynamos keep the lights glowing when you stop ?
A: None of them. This function is always in the headlights and tail-lights themselves, and it's present in all of the rear lights and almost all of the front lights in our shop.

Q: Don't the lights go out when you stop ?
A: No. Almost all good quality dynamo lights these days include a "standlight". This is a circuit including a capacitor which stores some of the energy generated to keep the lights on when you stop. It works for up to four minutes with some lights

Q: What happens if I use a headlight without a switch on a hub dynamo ?
A: The lights will come on whenever you ride your bike, even in the daytime. Some older hub dynamos were actually more efficient with the lights on than with them switched off. However, this isn't true for the hub dynamos that we sell now. It's better to have a switch.

Q: If I have an old dynamo lighting set and one component has failed then do I have to buy everything new again ?
A: Almost all dynamo lighting sets ever made are rated at 6 V 3 W. If yours has this rating (it's usually written on the bottom of the dynamo) then it is safe to substitute any of the front lights, rear lights or dynamos that we sell and use them in any combination with older parts for the same system.

Q: I have an old Sturmey Archer Dynohub. Can this work with modern headlights ?
A: The original Sturmey Archer Dynohub had a slightly lower rating. 6 V 2 W. Headlights expect 6 V 2.4 W. This means there isn't enough output to run a normal headlight at full brightness. However, in practice, the combination of one of these venerable dynohubs with a modern LED headlight will result in much more light than you ever could have produced with the original lights which matched the dynohub. It is best in this case to use a battery rear light so that all the energy from the dynohub goes to the headlight. Modern "dynohubs" produce 6 V 3 W and can run both front and rear lights.

Q: Where is the best place to buy good quality dynamo lighting ? A: The Dutch Bike Bits webshop, of course. We also have a wide range of battery lights if you would prefer them.

Q: Why can't you use just a dynamo rear light without a front light ?

A: The simple answer is that a rear dynamo light will always be damaged if used without a front light. The explanation of why is quite long and technical, but you'll find it below:


It is perfectly safe to use any of our dynamo front lights with our dynamos without also connecting a rear light. This will not damage the headlight. However, you must never use a dynamo to power a rear light without a headlight also being connected as this is quite likely to cause damage due to driving the rear light with too high a voltage. The reason why is as follows:

Sources of electrical power can approximate either a constant voltage or a constant current.

Constant voltage: A battery is an example of a constant voltage source, and it will attempt to supply the same voltage whatever load is attached. If you short-circuit a battery, then the battery will attempt to discharge at an infinite current and this is why lithium batteries, which are capable of very high currents, can cause fires.

Constant current: A bicycle dynamo is an example of a constant current source. Bicycle dynamos are rated at 6 V 3 W but what this really means is that they are current sources which attempt to deliver half an amp across whatever load is connected. The expected load of a rear and front light together is the equivalent of 12 ohms. A dynamo tries to supply sufficient voltage always to deliver the same current. With a short circuit, the dynamo will still deliver about 0.5 A at zero volts, but with an open circuit the dynamo will produce so high a voltage as it can in an attempt to deliver 0.5 amps.

You don't need to know any maths to safely connect dynamo lights. Simply pick a front and (optional) rear light, and wire them to a dynamo. However, if you want to know why you should never use a rear light on its own, read on:

The 12 ohm equivalent resistance for front and rear lights together comes from the front and rear lights being connected in parallel. The front light has an equivalent resistance of 15 ohms while the rear light is the equivalent of 60 ohms. To combine the two we use 1 / (1 / 15 + 1 / 60) = 12. Now that we know the equivalent resistance of each light we can calculate the current and power for each if used on their own.

For a front light alone, V=IR, V=0.5 * 15 = 7.5 V. P = IV, P = 0.5 * 7.5 = 3.75 W. This is a little over the rated value of 2.4 W, sufficient to damage older front lights with bulbs unless the bulb is changed to 3 W. However, modern LED based front lights can cope.

For a rear light, V=IR, V=0.5 * 60 = 30 V. P = IV, P = 0.5 * 30 = 15 W. This is a long way over the rated values of 0.6 W and 6 V and this is why dynamo rear lights do not last long if connected on their own to a dynamo. The front light is required to keep the voltage down to the correct level for the rear light.


1Please don't use mountain bike type lighting when you're not in a mountain bike race. It's anti-social and potentially dangerous to other road and cycle-path users who can be blinded by the amount of light scattered too high in front of you. It's analogous to driving a car with the headlights on full beam. The lights that we recommend here, especially the Philips lights, are very bright while being specifically designed to avoid this problem.
